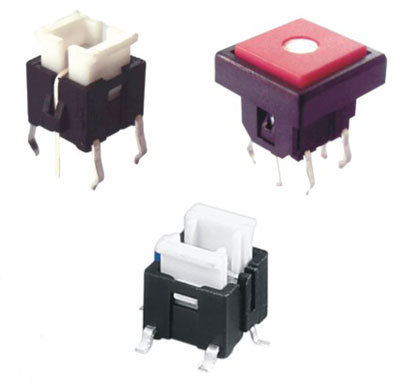

帶燈輕觸開關(guān)R592/R592B

• Rating：12VDC 50mA

• Contact Resistance：100mΩ Max

• Insulation Resistance：100MΩ min(250VDC)

• Dielectric Strength：250VAC 50/60Hz FOR 1 min

• Operating Force：160±50g

• Electric Life：100,000 cycles

• Operating Temperature Range：-20℃ ~ + 70℃

• Travel：0.25±0.1 mm

Part Number	Rating	Contact Resistance	Insulation Resistance	Dielectric Strength	Operating Force	Electric Life	Operating Temperature Range	Travel	PDF下載
R592-1L(With LED)	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R592-1	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R592-1ML(With LED)	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R592-1M	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R592B-1ML(With LED)	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R592B-1M	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R592B-102L(With LED)	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R592B-102	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R592B-108L(With LED)	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R592B-108	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R592B-1013L(With LED)	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R592B-1013	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R592B-1010L(With LED)	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R592B-1010	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R592B-1014L(With LED)	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R592B-1014	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R592B-101ML(With LED)	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R592B-101M	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R592B-102ML(With LED)	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R592B-102M	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R592B-108M	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R592B-108ML	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R592B-1013M	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R592B-1013ML	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R592B-111	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R592B-111L	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R592B-112	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R592B-112L	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
