The LED button switch is a composite button switch of the button switch with LED. The switch function has an LED indicator inside, which can accurately indicate the on/off state of the switch, and is very convenient for the user to find the switch position in the dark. Its opening and closing operations are all in the same position, and the rocker automatically returns to a flat state when the hand is released, which has a longer life.

Illuminated Push Button Switches R2915(A)

• Rating：0.5A,100VAC;0.2A,250VAC;0.5A,25VDC

• Contact Resistance：Silver contact:50mΩ MAX

• Insulation Resistance：500VFC,100MΩ MIN

• Operating Temperature：-40℃ ~85℃

• Operating Force：200±100gf.(1P2T)

• Operating Life：200,000 cycles

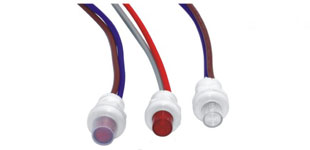

Illuminated Push Button Switches R2915(A)Figure

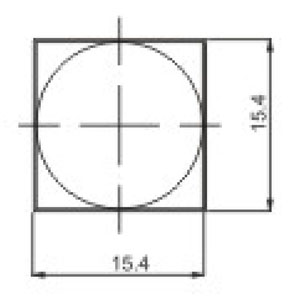

Illuminated Push Button Switches R2915(A) Structure Diagram

Part Number	Rating	Contact Resistance	Insulation Resistance	Operating Temperature	Operating Force	Operating Life	Download
R2915-3M-W-RGBT-15	0.5A,100VAC;0.2A,250VAC;0.5A,25VDC	Silver contact:50mΩ MAX	500VFC,100MΩ MIN	-40℃ ~85℃	200±100gf.(1P2T)	200,000 cycles	NULL
R2915-3M-W-GT-15	0.5A,100VAC;0.2A,250VAC;0.5A,25VDC	Silver contact:50mΩ MAX	500VFC,100MΩ MIN	-40℃ ~85℃	200±100gf.(1P2T)	200,000 cycles	NULL
R2915-3M-W-WT-15	0.5A,100VAC;0.2A,250VAC;0.5A,25VDC	Silver contact:50mΩ MAX	500VFC,100MΩ MIN	-40℃ ~85℃	200±100gf.(1P2T)	200,000 cycles	NULL
R2915A-3M-W-□-T-26	0.5A,100VAC;0.2A,250VAC;0.5A,25VDC	Silver contact:50mΩ MAX	500VFC,100MΩ MIN	-40℃ ~85℃	200±100gf.(1P2T)	200,000 cycles	NULL
R2915A-3M-W-RGBT-34	0.5A,100VAC;0.2A,250VAC;0.5A,25VDC	Silver contact:50mΩ MAX	500VFC,100MΩ MIN	-40℃ ~85℃	200±100gf.(1P2T)	200,000 cycles	NULL
R2915A-3M-W-□T-15	0.5A,100VAC;0.2A,250VAC;0.5A,25VDC	Silver contact:50mΩ MAX	500VFC,100MΩ MIN	-40℃ ~85℃	200±100gf.(1P2T)	200,000 cycles	NULL
R2915A-3M-W-UT-15	0.5A,100VAC;0.2A,250VAC;0.5A,25VDC	Silver contact:50mΩ MAX	500VFC,100MΩ MIN	-40℃ ~85℃	200±100gf.(1P2T)	200,000 cycles	NULL
R2915AP-3M-W-UT-15	0.5A,100VAC;0.2A,250VAC;0.5A,25VDC	Silver contact:50mΩ MAX	500VFC,100MΩ MIN	-40℃ ~85℃	200±100gf.(1P2T)	200,000 cycles	NULL
