The LED button switch is a composite button switch of the button switch with LED. The switch function has an LED indicator inside, which can accurately indicate the on/off state of the switch, and is very convenient for the user to find the switch position in the dark. Its opening and closing operations are all in the same position, and the rocker automatically returns to a flat state when the hand is released, which has a longer life.
OLED Dsiplay Push Switch RS998

•  Pole-Position：OFF-<0N> for Momentary Type,SPST
•  Contact Rating：100mA 12VDC
•  Contact Resistance：200mΩ max
•  Insulation Resistance：100MΩ min.500VDC
•  Dielectric Strength：Breakdown is not Allowable;500 VAC for 1 Minute
•  Operating Force：250±100gf
•  Operating Life：1，000,000 cycles
•  Operating Temperature Range：-10℃ ~ +60℃
•  Total Travel：3.3±0.20mm

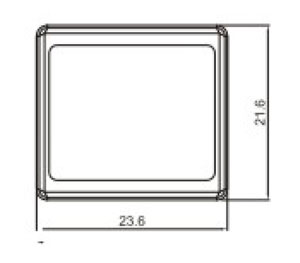

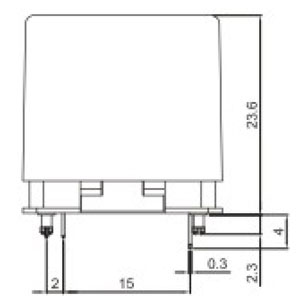

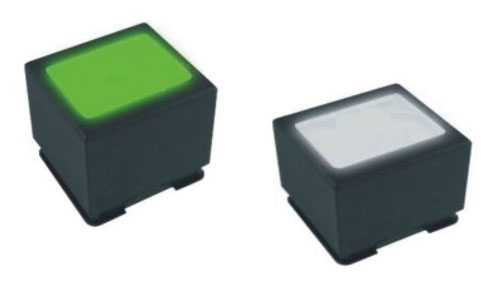

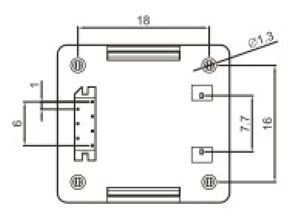

   OLED Dsiplay Push Switch RS998Figure   OLED Dsiplay Push Switch RS998 Structure Diagram     Switch RS998 Structure Diagram     Structure Diagram RS998



Part Number Pole-Position Contact Rating Contact Resistance Insulation Resistance Dielectric Strength Operating Force Operating Life Operating Temperature Total Travel Download
RS998-N11AK OFF-<0N> for Momentary Type,SPST 100mA 12VDC 200mΩ max 100MΩ min.500VDC Breakdown is not Allowable;500 VAC for 1 Minute 250±100gf 1，000,000 cycles -10℃ ~ +60℃ 3.3±0.20mm NULL
