Home ? Product Center ? Other ? Switch ? Illuminated Switch ? R292 ?

The LED button switch is a composite button switch of the button switch with LED. The switch function has an LED indicator inside, which can accurately indicate the on/off state of the switch, and is very convenient for the user to find the switch position in the dark. Its opening and closing operations are all in the same position, and the rocker automatically returns to a flat state when the hand is released, which has a longer life.
Illuminated Push Button Switches R292

•  Circuit：SPST
•  Current Rating：100mA
•  Contact Resistance：200mΩ Max.(Initial)
•  Insulation Resistance：100MΩ Min
•  Operating Force：250±100gf
•  Voltage Rating：12VDC
•  Operating Temperature：-20℃ ~+70℃
•  Dielectric Withstanding Voltage：250VAC for 1 minute
•  Full Travel：4.5mm±0.2mm
•  Mechanical LifeOver：1,000,000 cycles
•  Electrical LifeOver：100,000 cycles
•  Function：Momentary
•  Manual Welding：350℃ for 3 seconds
•  Function：OFF-(ON)

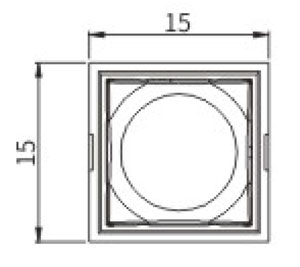

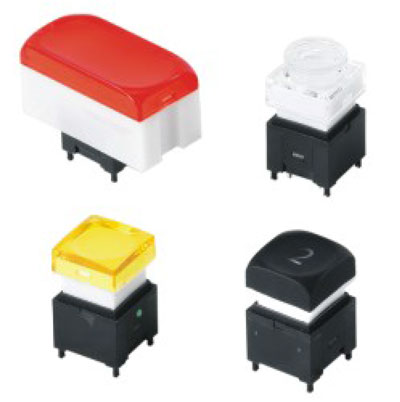

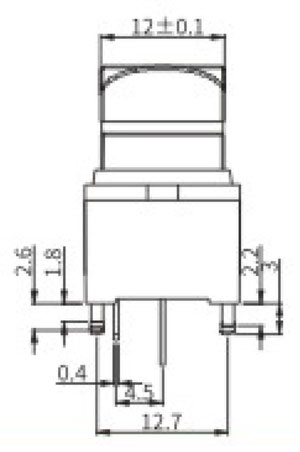

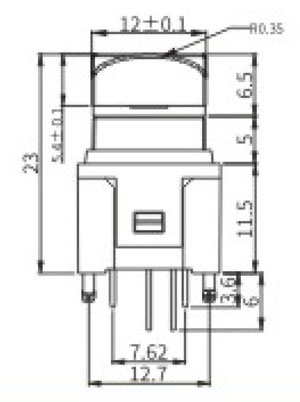

  Illuminated Push Button Switches R292 Figure Illuminated Push Button Switches R292 Structure Diagram    Switch R292 Structure Diagram    R292 Structure Diagram



Part Number Contact Resistance Insulation Resistance Operating Force Voltage Rating Operating Temperature Dielectric Withstanding Voltage Mechanical Life Electrical Life Download
R2922-□-2W-□T 200mΩ Max.(Initial) 100MΩ Min 250±100gf 12VDC -20℃ ~+70℃ 250VAC for 1 minute Over 1,000,000 cycles Over 100,000 cycles NULL
R2925-□-2W-□T 200mΩ Max.(Initial) 100MΩ Min 250±100gf 12VDC -20℃ ~+70℃ 250VAC for 1 minute Over 1,000,000 cycles Over 100,000 cycles NULL
R2927□-2W-□T 200mΩ Max.(Initial) 100MΩ Min 250±100gf 12VDC -20℃ ~+70℃ 250VAC for 1 minute Over 1,000,000 cycles Over 100,000 cycles NULL
R2927□-2W-RGBT 200mΩ Max.(Initial) 100MΩ Min 250±100gf 12VDC -20℃ ~+70℃ 250VAC for 1 minute Over 1,000,000 cycles Over 100,000 cycles NULL
R2924□-2W-□T 200mΩ Max.(Initial) 100MΩ Min 250±100gf 12VDC -20℃ ~+70℃ 250VAC for 1 minute Over 1,000,000 cycles Over 100,000 cycles NULL
