Home ? Product Center ? Other ? Switch ? Illuminated Switch ? R2909 ?

The LED button switch is a composite button switch of the button switch with LED. The switch function has an LED indicator inside, which can accurately indicate the on/off state of the switch, and is very convenient for the user to find the switch position in the dark. Its opening and closing operations are all in the same position, and the rocker automatically returns to a flat state when the hand is released, which has a longer life.
Illuminated Push Button Switches R2909

•  Rating：0.1A 30VDC
•  Contact Resistance：50mΩ Max.(Initial)
•  Insulation Resistance：100MΩ Min (at 500 VDC)
•  Dielectric Strength：AC 500V (50/60 Hz for 1 minute)
•  Operating Force：150±100gf（Momentary)
                                 250±100gf(Alternate)
                                 200±100gf(Momentary With Click)
•  Electrical Life：10.000 Cycles Min
•  Ambient Temperature：-10℃ ~+ 80℃

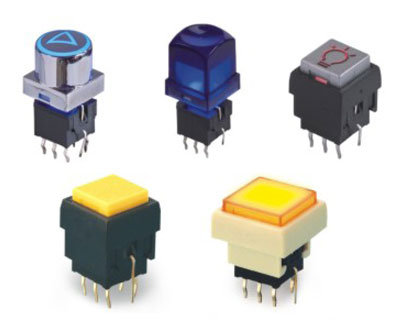

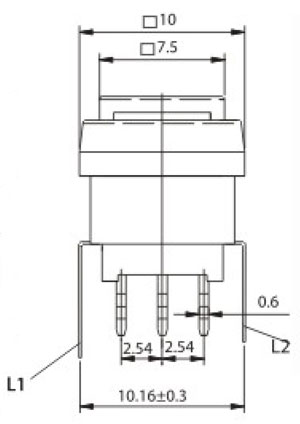

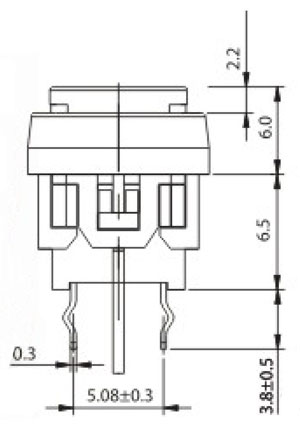

   Illuminated Push Button Switches Figure R2909   Illuminated Push Button Switches R2909 Structure Diagram        Switch R2909 Structure Diagram          Structure Diagram R2909



Part Number Rating Contact Resistance Insulation Resistance Dielectric Strength Operating Force Electrical Life Ambient Temperature Download
R29091F□L 0.1A 30VDC 50mΩ Max.(Initial) 100MΩ Min (at 500 VDC) AC 500V (50/60 Hz for 1 minute) 150±100gf（Momentary) 250±100gf(Alternate) 200±100gf(Momentary With Click) 10.000 Cycles Min -10℃ ~+ 80℃ NULL
R29093F□L 0.1A 30VDC 50mΩ Max.(Initial) 100MΩ Min (at 500 VDC) AC 500V (50/60 Hz for 1 minute) 150±100gf（Momentary) 250±100gf(Alternate) 200±100gf(Momentary With Click) 10.000 Cycles Min -10℃ ~+ 80℃ NULL
R290901□L 0.1A 30VDC 50mΩ Max.(Initial) 100MΩ Min (at 500 VDC) AC 500V (50/60 Hz for 1 minute) 150±100gf（Momentary) 250±100gf(Alternate) 200±100gf(Momentary With Click) 10.000 Cycles Min -10℃ ~+ 80℃ NULL
R29094F□L 0.1A 30VDC 50mΩ Max.(Initial) 100MΩ Min (at 500 VDC) AC 500V (50/60 Hz for 1 minute) 150±100gf（Momentary) 250±100gf(Alternate) 200±100gf(Momentary With Click) 10.000 Cycles Min -10℃ ~+ 80℃ NULL
R29095F□L 0.1A 30VDC 50mΩ Max.(Initial) 100MΩ Min (at 500 VDC) AC 500V (50/60 Hz for 1 minute) 150±100gf（Momentary) 250±100gf(Alternate) 200±100gf(Momentary With Click) 10.000 Cycles Min -10℃ ~+ 80℃ NULL
R29096F□L 0.1A 30VDC 50mΩ Max.(Initial) 100MΩ Min (at 500 VDC) AC 500V (50/60 Hz for 1 minute) 150±100gf（Momentary) 250±100gf(Alternate) 200±100gf(Momentary With Click) 10.000 Cycles Min -10℃ ~+ 80℃ NULL
R290907□L 0.1A 30VDC 50mΩ Max.(Initial) 100MΩ Min (at 500 VDC) AC 500V (50/60 Hz for 1 minute) 150±100gf（Momentary) 250±100gf(Alternate) 200±100gf(Momentary With Click) 10.000 Cycles Min -10℃ ~+ 80℃ NULL
R290902□L 0.1A 30VDC 50mΩ Max.(Initial) 100MΩ Min (at 500 VDC) AC 500V (50/60 Hz for 1 minute) 150±100gf（Momentary) 250±100gf(Alternate) 200±100gf(Momentary With Click) 10.000 Cycles Min -10℃ ~+ 80℃ NULL
R290903□L 0.1A 30VDC 50mΩ Max.(Initial) 100MΩ Min (at 500 VDC) AC 500V (50/60 Hz for 1 minute) 150±100gf（Momentary) 250±100gf(Alternate) 200±100gf(Momentary With Click) 10.000 Cycles Min -10℃ ~+ 80℃ NULL
R290904□L 0.1A 30VDC 50mΩ Max.(Initial) 100MΩ Min (at 500 VDC) AC 500V (50/60 Hz for 1 minute) 150±100gf（Momentary) 250±100gf(Alternate) 200±100gf(Momentary With Click) 10.000 Cycles Min -10℃ ~+ 80℃ NULL
R290905□L 0.1A 30VDC 50mΩ Max.(Initial) 100MΩ Min (at 500 VDC) AC 500V (50/60 Hz for 1 minute) 150±100gf（Momentary) 250±100gf(Alternate) 200±100gf(Momentary With Click) 10.000 Cycles Min -10℃ ~+ 80℃ NULL
