Home ? Product Center ? Other ? Switch ? Illuminated Switch ? R0193 ?

The LED button switch is a composite button switch of the button switch with LED. The switch function has an LED indicator inside, which can accurately indicate the on/off state of the switch, and is very convenient for the user to find the switch position in the dark. Its opening and closing operations are all in the same position, and the rocker automatically returns to a flat state when the hand is released, which has a longer life.
Illuminated Push Button Switches R0193

•  Rating：0.1A 30VDC
•  Contact Resistance：100mΩ Max
•  Insulation Resistance：DC 500V 100MΩ Min
•  Dielectric Strength：AC 250V for 1 minute
•  Operation Force：200±50gf
•  Operation Temperation：10℃ ~60℃
•  Total Travel：2.5±0.4mm
•  Operation Life：50,000 cycles

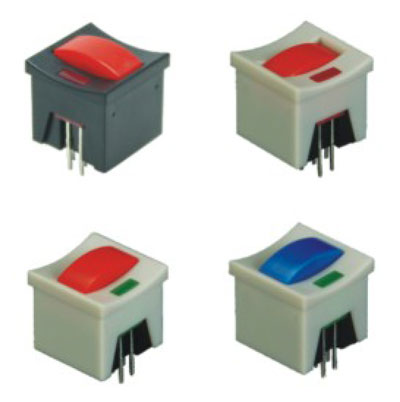

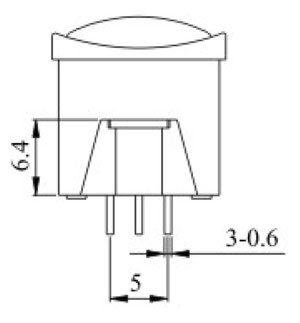

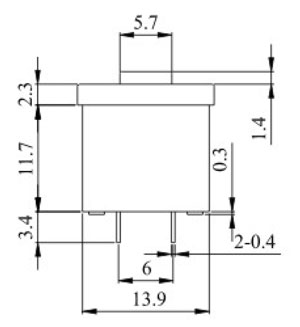

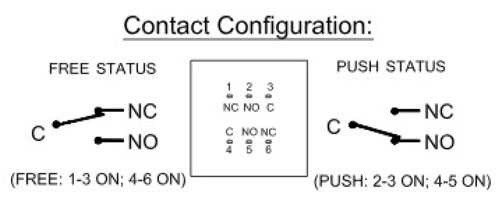

 Illuminated Push Button Switches R0193 Figure      Illuminated Push Button Switches R0193 Structure Diagram      Switch R0193 Structure Diagram      R0193 Structure Diagram



Part Number Rating Contact Resistance Insulation Resistance Dielectric Strength Operation Force Operation Temperation Total Travel Operation Life Download
R0193-UA-LN2 0.1A 30VDC 100mΩ Max DC 500V 100MΩ Min AC 250V for 1 minute 200±50gf 10℃ ~60℃ 2.5±0.4mm 50,000 cycles NULL
R0193-RB-NR 0.1A 30VDC 100mΩ Max DC 500V 100MΩ Min AC 250V for 1 minute 200±50gf 10℃ ~60℃ 2.5±0.4mm 50,000 cycles NULL
R0193-RA-LN1 0.1A 30VDC 100mΩ Max DC 500V 100MΩ Min AC 250V for 1 minute 200±50gf 10℃ ~60℃ 2.5±0.4mm 50,000 cycles NULL
